Choosing a Mac System Monitor Beyond iStat Menus
A menu bar monitor does one thing: it reads counters the kernel already keeps and puts them where you can see them without stopping work. That is useful, and it is also the entire boundary. No monitor has ever fixed a runaway process, a full disk, or a throttling chip. It tells you which of those is happening so the next step is a decision instead of a guess. Choose one by the question you keep asking, not by how many numbers it can fit above the desktop.
Readout or record

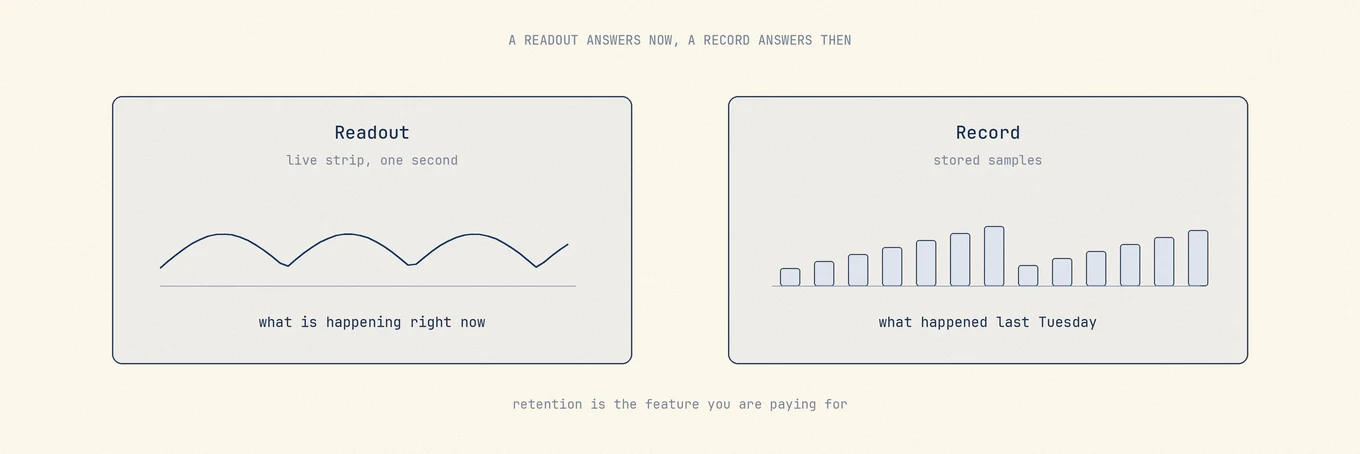

Two different products share the label "system monitor", and confusing them is why people overbuy. A readout is a live strip of numbers updating roughly once a second, answering "what is happening right now". A record stores samples so you can answer a question about a moment that has already passed: why the machine was hot at three in the morning, whether last week's battery drain was one app or all of them.
Most people need the readout. Retention is what you are actually paying for when a monitor costs money, and if you have never wanted to look backwards, it is a feature you will never open.
Under the hood: what monitoring costs and why coverage differs
Nearly every monitor here reads the same sources. CPU tick counts and memory page statistics come from Mach host statistics, the same interface Activity Monitor uses. Disk activity, battery detail, and temperature and fan sensors arrive through IOKit. Throughput comes from per-interface byte counters. Comparing tools on whose numbers are more accurate is mostly a category error: they read the same kernel.
A few figures are not free to obtain. Per-process power attribution and fine-grained GPU
power detail come from powermetrics, which requires root, so a monitor showing those
either asks for an administrator password, installs a privileged helper, or estimates
from something cheaper. Worth asking about before you install anything.

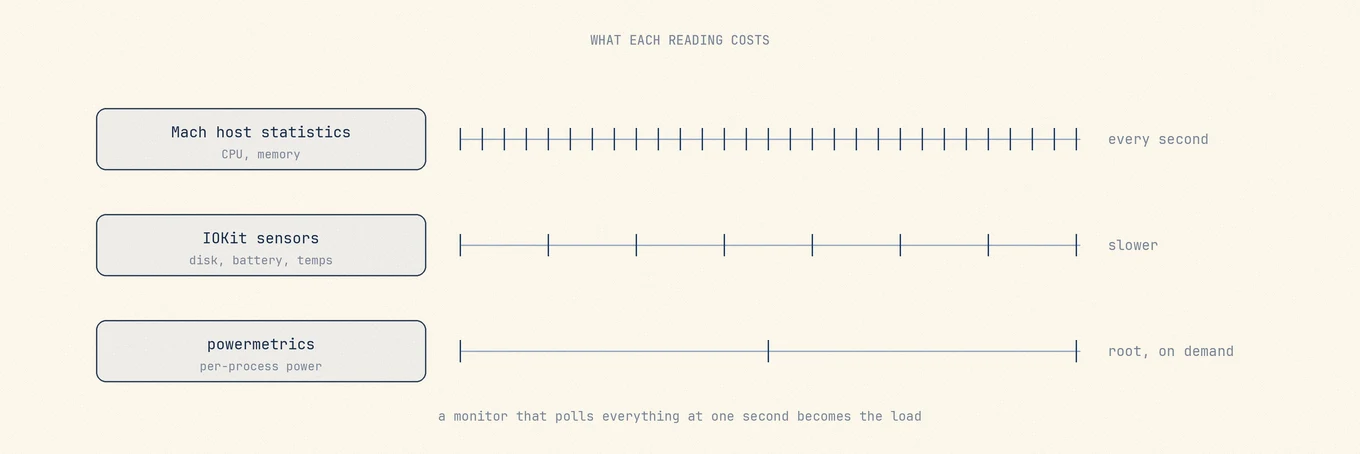

A one-second poll is not free. Each tick wakes the process, requeues a redraw, and keeps the CPU out of its deepest idle states. Reading a counter costs microseconds, but enumerating every process, sweeping sensors, querying drive health, and collecting GPU statistics do not. A monitor that runs all of those on the same one-second cadence becomes part of the load it is measuring, which shows up first as battery drain on a laptop doing nothing else. Careful implementations sample in tiers: cheap counters live, expensive probes on a slower schedule or from a cache.
Free memory is the wrong number to display, and some monitors still lead with it. macOS deliberately fills unused RAM with file cache and releases it the instant a program needs the space, so a low free-memory figure is the system working correctly. The honest indicator is memory pressure. A readout built around free gigabytes trains you to worry on a schedule that has nothing to do with your Mac.
Sensor coverage is a property of the machine, not the app. The set of temperature, fan, voltage, and power sensors a Mac publishes varies by model and generation. Apple Silicon exposes a different set than late Intel Macs, and a fanless MacBook Air reports no fan speed because there is no fan. No monitor can show a sensor the hardware does not expose, and when two disagree about which sensors exist, the usual cause is a naming table rather than one being more capable.
Stored history is the real differentiator. Reading a current value is close to free and everyone does it. Keeping samples means a store, a retention policy, and background writes that must not themselves become the load.
The choices
Activity Monitor, already installed
Apple's Activity Monitor covers CPU, memory, energy, disk, network, and cache activity, and can show CPU activity as a live graph in the Dock. It is the authoritative view of processes on the machine, and its inspector, sample, and open-files detail go deeper than most menu bar tools attempt. Its weakness is that it is a window, not a glance, so you usually open it after the interesting moment. For a Mac that misbehaves a few times a year, that is enough.
Stats, the open-source default
Stats is an MIT-licensed menu bar monitor with
modules for CPU, GPU, memory, disk, network, battery, sensors, Bluetooth devices, and a
multi-timezone clock, plus a legacy fan control mode. It supports macOS 12 and newer and
installs by download or brew install stats.
Maintenance is easy to verify rather than assume: releases and commits land continuously, including fixes for the newest Apple Silicon chips. Its documentation does not describe long-term history storage, so treat it as a readout. For most people asking which menu bar monitor to get, this is the correct first answer.
iStat Menus, the long-history choice
iStat Menus from Bjango is the deepest of the group. Its listed coverage includes per-core CPU usage with history graphs, load averages, uptime and frequency, memory usage with pressure, compressed memory and swap, disk space and activity with S.M.A.R.T. status, network bandwidth with a breakdown of the top apps, sensors for temperatures, fans, frequencies and voltages, battery state including AirPods and Magic accessory levels, plus weather and a configurable clock. Version 7.3 requires macOS 11 or later.
The history graphs and the per-app bandwidth breakdown are the reasons to choose it over a free readout. It sells as a one-time purchase in single and family editions, with discounted upgrades from the previous major version and a time-limited trial, and is also available through Setapp as part of a subscription bundle. Check the official page for current terms. It does not clean, uninstall, or repair anything, and that focus is a feature.
MenuMeters, effectively retired
MenuMeters was the classic answer here for years and is no longer a live option. The most widely used fork, yujitach/MenuMeters, is GPL-2.0 and describes support through Big Sur. Its last release was in November 2021, its last commit in March 2022, and its own README now points readers toward actively maintained alternatives, naming Stats among them. Other forks exist, but none has taken over as the maintained successor. If you find MenuMeters recommended in an older thread, that recommendation has expired.
Sensei, hardware dashboard with cleanup attached
Sensei from Cindori presents hardware and health information rather than a minimal readout: CPU, GPU and battery statistics, thermal and fan data, S.M.A.R.T. drive health, battery cycle counts, a disk speed benchmark, an SSD Trim control, and a customizable status bar monitor, alongside cleanup and uninstall features. Its store page offers both an annual subscription and a one-time license, each valid for up to three Macs.
Consider it when drive and battery health context is the main attraction and cleanup is a bonus. The page states no macOS version floor, so verify compatibility before buying.
Mole, monitoring inside a maintenance app
Mole's Status tab is a bento grid of about nine tiles, health score, CPU, memory, GPU, disk I/O, network, battery, thermal and fans, and uptime, each carrying a 60-second sparkline, above a process list that refreshes every second with sortable name, PID, CPU, power, and memory columns, pinning, and a right-click to terminate or copy the executable path. The menu bar HUD shows live CPU, memory, and network speed, or a compact icon, and its popover carries the health hero, hardware tiles, and the top five CPU processes, all reading one shared snapshot rather than sampling three times. The boundary is explicit: 60 seconds of sparkline is not stored history, so it answers "what is happening now" and not "what happened last Tuesday". If backwards-looking questions are your reason for buying a monitor, buy one that keeps a record.
Its license is a one-time purchase with lifetime updates for two Macs on macOS 14 or
later, monitoring and scanning are free to use, and there is no telemetry. A free
open-source CLI covers the same ground with mo status and mo status --json.
Quick comparison
| Tool | What it samples | Stored history | Licensing model |
|---|---|---|---|
| Activity Monitor | CPU, memory, energy, disk, network, cache | Live only | Included with macOS |
| Stats | CPU, GPU, memory, disk, network, battery, sensors, Bluetooth | Not documented | MIT open source |
| iStat Menus | The above plus S.M.A.R.T., per-app bandwidth, weather | Yes, history graphs | One-time, single or family |
| MenuMeters | CPU, memory, disk, network | No | GPL-2.0, unmaintained since 2022 |
| Sensei | Hardware, thermals, battery and drive health, benchmarks | Check official page | Subscription or one-time, up to 3 Macs |
| Mole | CPU, GPU, memory, disk I/O, network, battery, thermal, processes | 60-second sparklines | One-time, two Macs |
A repeatable way to use a monitor
Write down the question you keep asking. If it is "what is eating the CPU right now", Activity Monitor or a free readout closes it. If it is "what happened while I was away", you need stored history and only some of these keep it. If it is "is this drive or battery degrading", you want health reporting rather than a live graph. Buying above your question produces an app you glance at and never act on.
Then check the cost of the monitor itself. Watch its own CPU use for a minute on battery, and turn off modules you do not read.
Finally, stop at the handoff. A monitor's job ends the moment it names the saturated resource; the fix lives in the workload, the app, the storage, or the airflow. That handoff is the subject of diagnosing a slow Mac, and if the reading that worries you is a temperature, checking Mac temperature covers what the number does and does not mean.
